Posted by Andrew on September 18, 2015

Category: Motorcycle

Alex Earle is the Design Program Manager for Volkswagen America. But he is just as passionate about bikes as well as cars and the result of this passion is a beautiful street tracker. The custom bike is based on the Ducati Monster but it’s lighter, faster and more beautiful. The basic bike can be set up in two distinct versions.  In addition to the basic 19” wheeled tracker, a quick change to 17”, 3 spoke wheels and handlebars with reduced pull back create  a 1982 Superbike styled road course bike with a much lower stand over height.

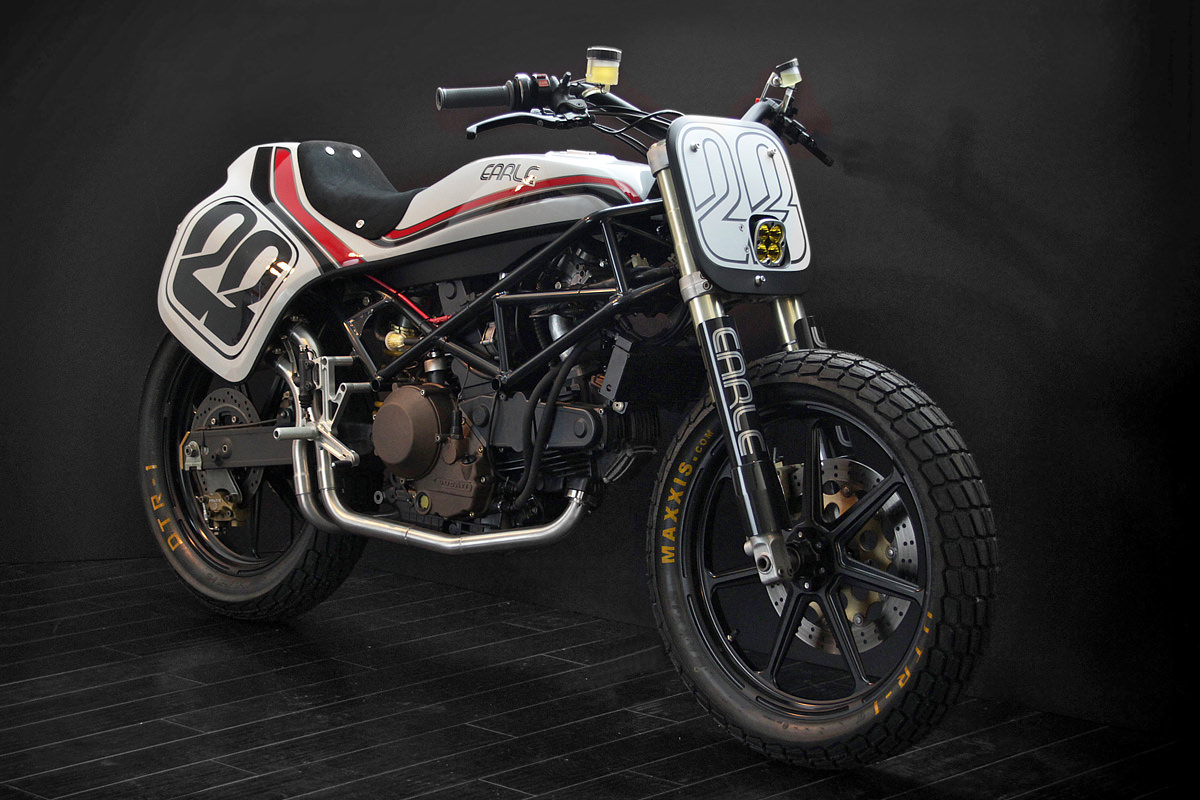

Street Tracker, based on the Ducati Monster

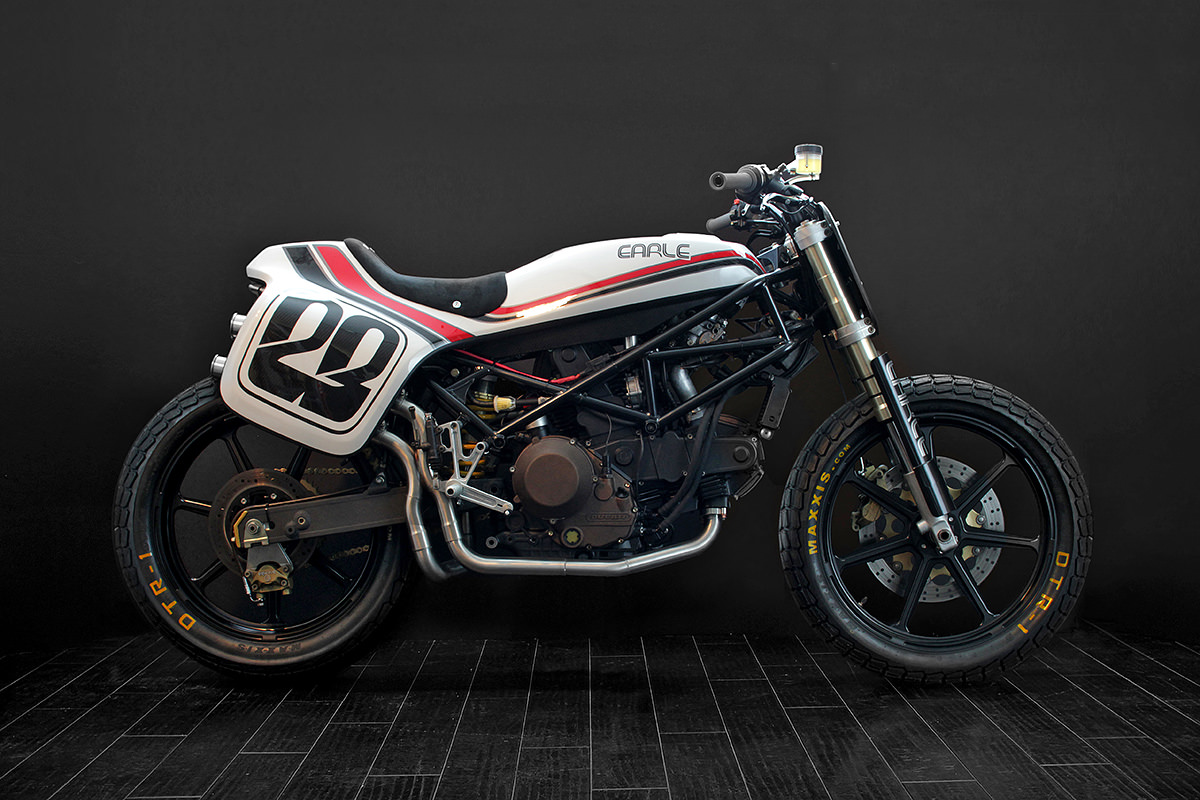

Street Tracker, based on the Ducati Monster

The goal was to create a lightweight, modern-day tracker with the latest technology, reasonable performance and distinctive looks. Looking at the pictures, Alex succeeded.

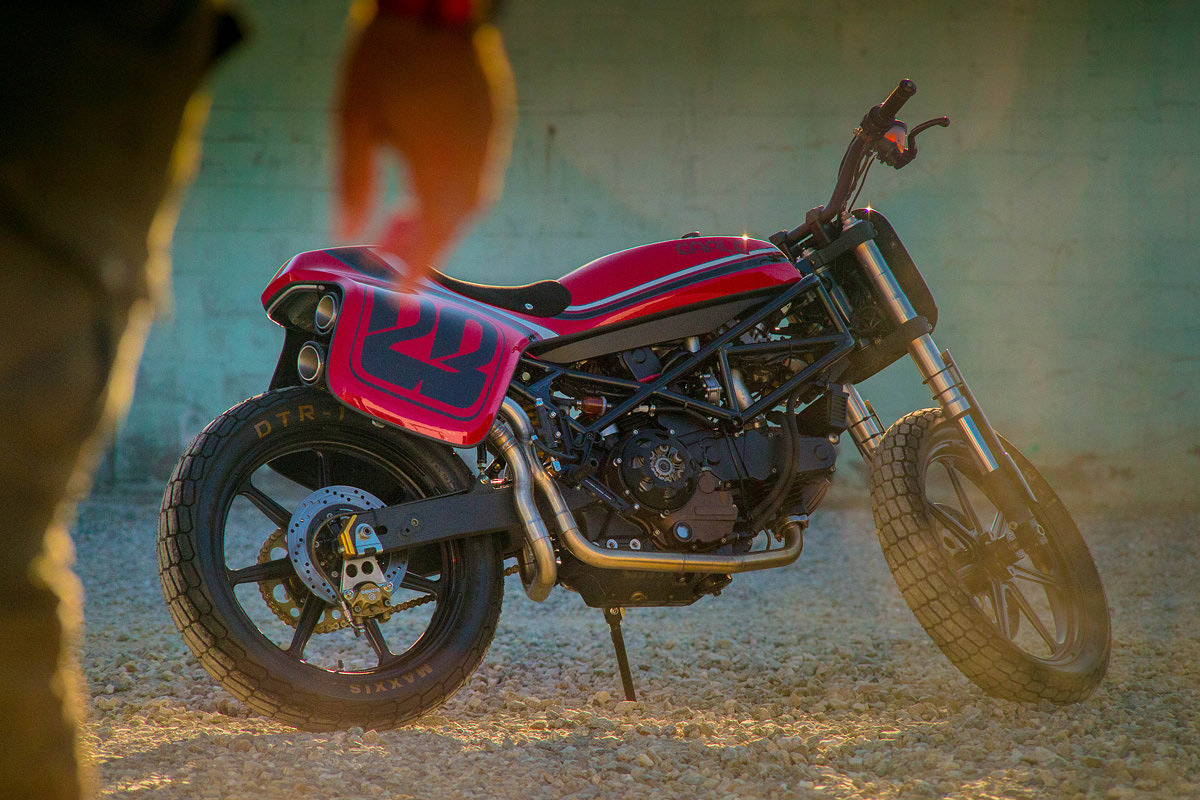

Street Tracker, based on the Ducati Monster

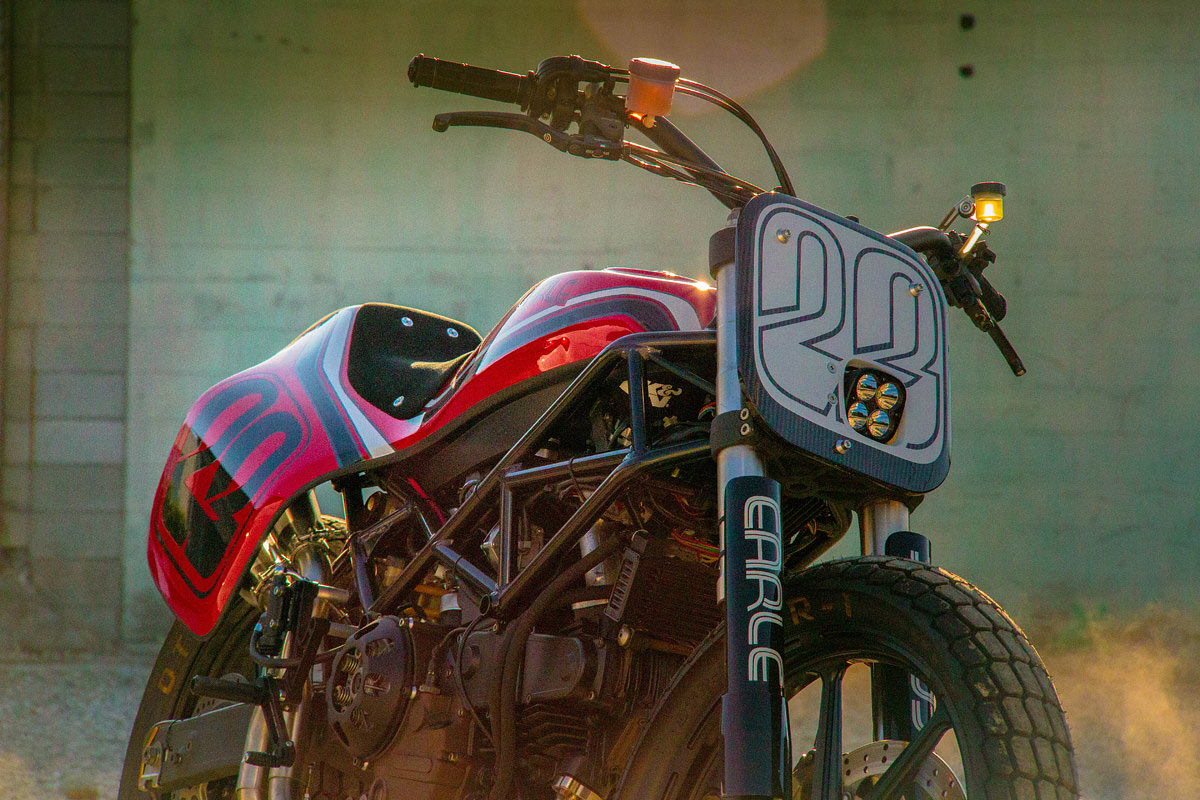

Street Tracker, based on the Ducati Monster

“It’s the perfect convergence of my personal interests,” says Alex. “Excellent Ducati drivetrain, oversized wheels shod with aggressive rubber, tall seat height, and pure flat track proportion and graphics.”

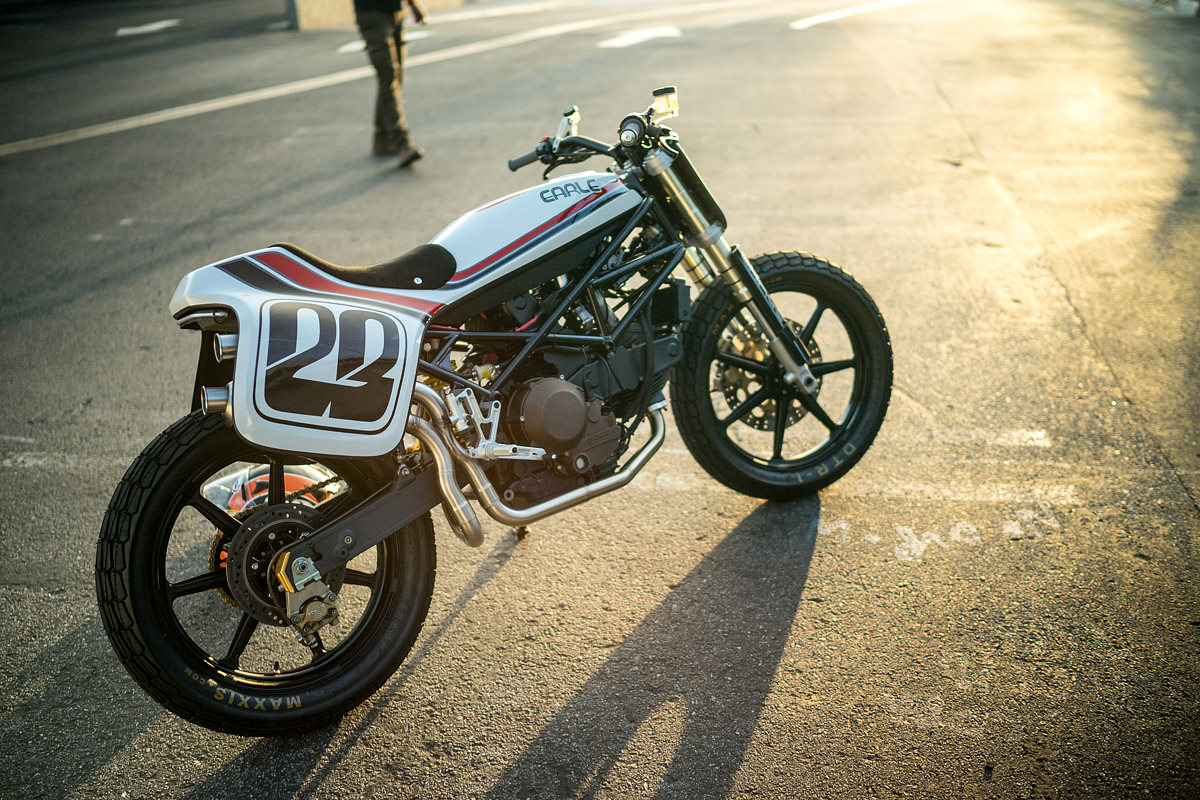

Street Tracker, based on the Ducati Monster

Street Tracker, based on the Ducati Monster

Ducati Monster 1200 1200S 821 1″ Handlebar Comfort Riser Kit

Banner Placeholder 3

First, he built a prototype using a 1:5 scale model, then 3D scanned it – this is the same protyoping process that could be found in the car industry.

“The beauty of working in Los Angeles is that there’s a small but fanatical group of fabricators who can realize just about anything you can dream up,” he says. “Guys have 3D scanners, big 5-axis mills and 3D printers. And most importantly, a deep well of experience with carbon, engineering, engines and exhaust dynamics.”

Street Tracker, based on the Ducati Monster

Street Tracker, based on the Ducati Monster

One of the key goals was to reduce weight. He used as much carbon fibre as possible and the result is a dry weight of 157 kg (345 lb).

The engine is Ducati’s air-cooled, 900cc unit from the late nineties, coupled with a custom exhaust. Other features include a waterproof seat, LED headlamps, Brembo radial brake and clutch levers, K&N air filters (airbox eliminated), and carbon fiber number plate with integrated LED headlamp.

Street Tracker, based on the Ducati Monster

Street Tracker, based on the Ducati Monster

Specifications:

Custom, carbon fiber number plate with integrated LED headlamp
Vortex J Murph flat track bars
Custom bar clamp risers
Carbon fiber fork protectors
Brembo radial brake / clutch levers
K&N air filters (airbox eliminated)
Custom LED taillights incorporating turn indicators
Carbon fiber, illuminated number plate holder
Custom 19” wheels milled by RSD
Maxxis DTR-1 track tires with custom sidewall graphics
Ducati Performance rearsets
Full custom, tuned exhaust
Simple 4-bolt body removal
Carbon fiber body support
Carbon fiber battery tray, rear fender inner
Motogadget cycle computer
Bonded aircraft fuel cap (no mechanical fasteners)
Highly reworked frame
Ducati 900cc air cooled, carbureted engine 1994-1999
